Wireless Bridge, 5.8G Outdoor CPE Point to Point Long Range Access Point with 14DBi High Gain Antenna PTP/PTMP Plug& Play 2-Pack

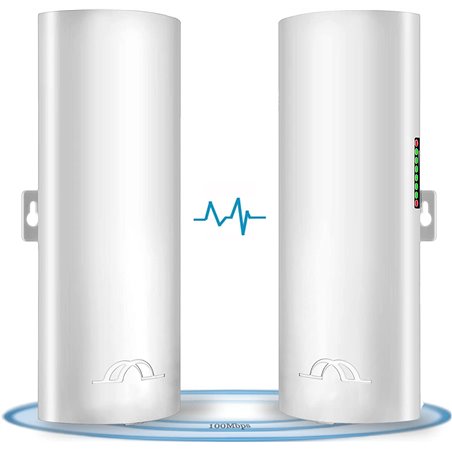

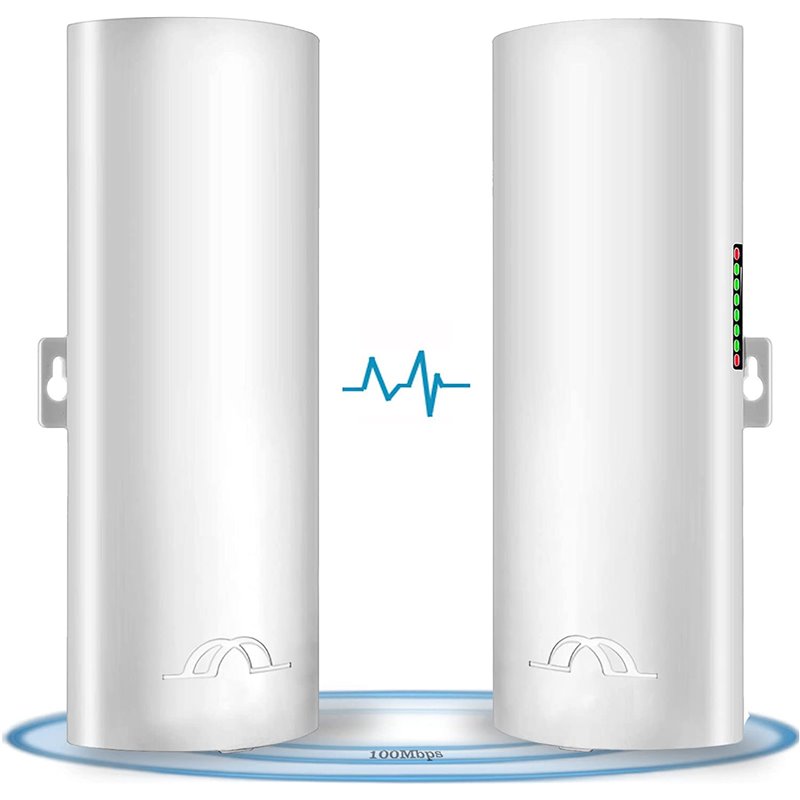

CPE335 Outdoor Network Bridge

CPE335 5.8G Long Range Access Point Extender with 100Mbps and 1.86 Miles Data Transfer Range and 24v power supply.

CPE335 outdoor wifi bridge kits is one pair of outdoor high power and high performance 300Mbps wireless bridges, which works at 5GHz frequency. Supports Point-to-Point and Point-to-Multipoint wireless connection. It is more stable and higher speed and anti-interference performance than 2.4GHz wireless bridge. Moreover, it is easy to manage through the WEB interface.

Function:

A. the device can works as Auto pairing mode: simply to use, connect both bridges to the PoE power adapter to start working, it will auto pair in few minutes. Customize mode: need connect the bridges to the computer through ethernet cable, and configure the master & slave parameters, this mode suit for experienced technician.

B. the device can use for share internet networks to a long distance, output WiFi hot point, also can use for transmit the long ranges IP cameras' video stream to the control center without complicated wiring connection.

C. Auto pairing mode works for point-to-point access connection, customize mode can configure the point to multiple point connection.

Application:

The CPE335 kits is great to extend your home internet network to another building without wire connection, you can share your network to your barn garage, warehouse, workshop or small store near to your home, it also works for enterprise to share the internet from different office, workshop, warehouse and etc.

We offer a pair of wireless bridge in the package, we need to set one works as master mode, and another works as slave mode.

Wireless Bridge Master & Slave Set:

1.Master Bridge Set

Move the mode switch to "A" position, the device works as master mode

2.Slave Bridge Set

Move the mode switch to "B" position, the device works as slave mode

IF YOU DON'T HAVE ANY IT KNOWLEDGE, PLEASE CONSULT RELEVANT PROFESSIONALS BEFORE PURCHASING.

Share your internet network from one building to another without complicated wire connection

Extend your internet network to another building without wire connection, works as outdoor wireless access point

1.Bridge A Connection - Master Bridge

Step 1: the LAN port of the PoE Adapter connect to the router through an ethernet cable.

Step 2: the PoE port of the PoE adapter connect to LAN port of the master wireless bridge by another ethernet cable.

2.Bridge B Connection - Slave Bridge

Step 1: the PoE port of the PoE adapter connect to the LAN port of slave bridge through an ethernet cable

Step 2: the LAN port of the PoE adapter connect to the LAN port of the computer or router by another ethernet cable

The master bridge transfer data to slave bridge works as point to point mode to extend network access to another house, office, building for internet surfing. The master bridge also output WiFi hot point, such as outdoor access point, you can open the WiFi connection setting on your cellphone, or laptop, you will find the WiFI name CPE5G_5Gxxx, enter the password to get access.

The access password is pre-programmed, it is different depend on what channel the wireless bridge working, but only change the last two or three numbers.

For example: the WiFi hot point name is CPE5G_5G161, and the default password is zllinkcpe123456161, if the name is CPE5G_5G153, the password will be zllinkcpe123456153, the last three numbers of the password is match to the last three numbers of the name, zllinkcpe123456 is the same, you can find the password with a little bit change for different channel.

Point to point video surveillance connection diagram

Transfer the video stream from the slave bridge to the master bridge, DVR receive & manage the video stream

Wireless Bridge Master & Slave Set:

1.Master Bridge Set

Move the mode switch to "A" position, the device works as master mode

2.Slave Bridge Set

Move the mode switch to "B" position, the device works as slave mode

Wireless Bridge Connection

1.Bridge A Connection - Master Bridge

Step 1: the LAN port of the PoE Adapter connect to the DVR through an ethernet cable.

Step 2: the PoE port of the PoE adapter connect to LAN port of the master wireless bridge by another ethernet cable.

2.Bridge B Connection - Slave Bridge

Step 1: the PoE port of the PoE adapter connect to the LAN port of slave bridge through an ethernet cable

Step 2: the LAN port of the PoE adapter connect to the LAN port of the switch by another ethernet cable

Point to Point video surveillance, expand your video surveillance range, easily management all your surveillance camera in one DVR system without complicated wiring. Transfer your video surveillance network IP cameras data from another building to your DVR, easy to management all the cameras in one system.

Point to multiple point video surveillance connection diagram

One master bridge and multiple slave bridge connection together by computer configure to management different place's IP cameras to one DVR system

Wireless Bridge Connection

1.Bridge A Connection - Master Bridge

Step 1: the LAN port of the PoE Adapter connect to the DVR through an ethernet cable.

Step 2: the PoE port of the PoE adapter connect to LAN port of the master wireless bridge by another ethernet cable.

2.Bridge B Connection - Slave Bridge

Step 1: the PoE port of the PoE adapter connect to the LAN port of slave bridge through an ethernet cable

Step 2: the LAN port of the PoE adapter connect to the LAN port of the IP cameras by another ethernet cable

Install the slave bridges face to face to the master bridge, and the direction angle no more than 60 degrees, this connection need login into computer to configure the IP address for different slave, please read the user manual for details.

In this way, you can easy transfer the network camera video streaming from different buildings to the DVR of the control center, point to multiple point function is great for you to monitoring multiple buildings without complicated wiring.

CPE335 Product Interface

The P2P wireless bridge work by two modes, auto pairing mode with pre-programed suit for newbie, customize mode suit for experienced user.

Auto pairing mode:

connect it to the PoE power adapter, the Power LED turns green on, system is power on, when the both bridges all are power on, it will auto pair in few minutes, the pairing and LAN status LED light all turns green on. the digital LED indictor display the numeric in red color.

you can press the "RST" button to change the channel to find a good frequency without interference, short press the button, the LED indicator will display the numeric "0","1","2","3"..."F" one by one, and change in cycle, each numeric means a different frequency, you can find the details on the user manual.

Customize mode:

at this mode you need connect it to computer and set the different IP address and working mode, short press the "RST" button will not functional at this mode, but you can press and hold this button over 10 seconds to reset to factory mode.
