5.8G Wireless Bridge 900Mkbps Outdoor Network Extender, Point to Point Access Point Long Range WiFi BridgeHigh Speed 2-Pack

$109.99

CPE550 Wireless Bridge 900Mkbps Outdoor Network Extender,Point to Point Access Long Range WiFi Bridge Outdoor Access Point to Point High Speeds 5.8G Support PoE 2-Packs

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

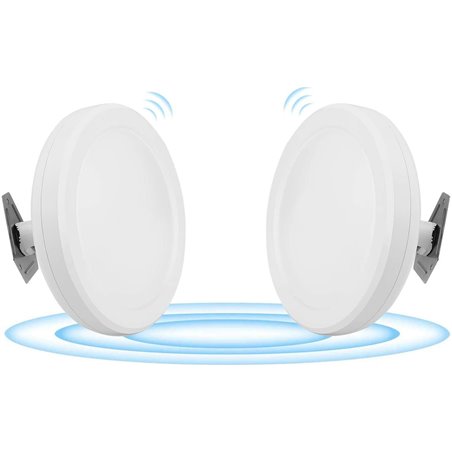

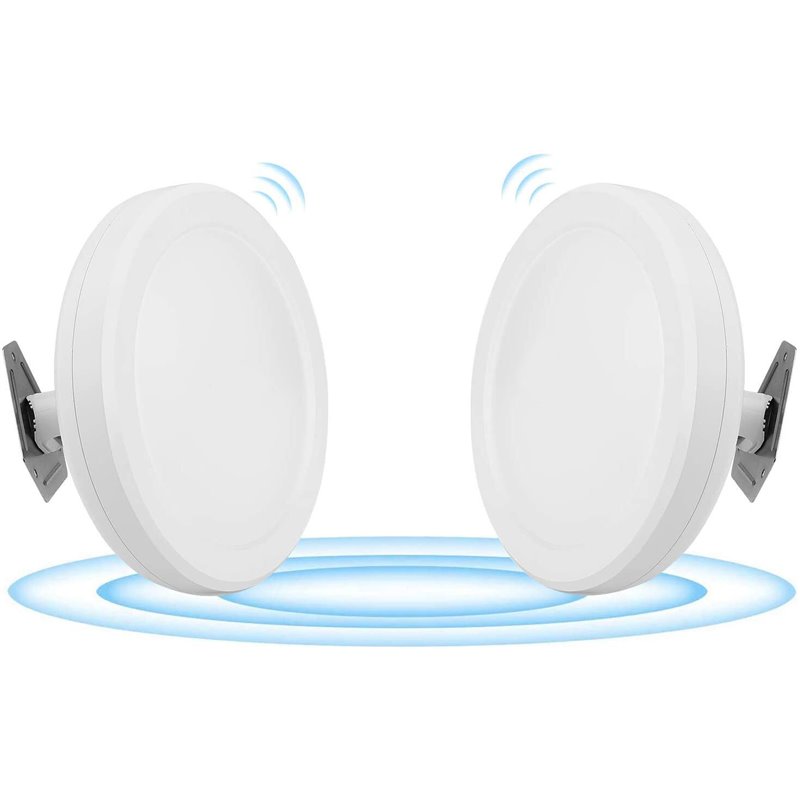

CPE550 Wireless Birdge is an outdoor high power and high-performance CPE, which works at 5G frequency, wireless ratio frequency up to 500mW, good for long distance transmission, 16M Flash + 64M RAM, more stable performance in wireless transmission . It supports Point to Point and Point to Multi-Point wireless connection; The transmission speed between 2 bridges max is 900Mbps; The highest network speed that can be achieved max is 867Mbps; The transmission distance max is 5 km /3.1 mile.

  • CPE550 Outdoor Wireless Bridge is a 5 GHz high-powered long-distance 11AC wireless outdoor AP/client bridge offering dual-PoE Ethernet ports and a high-gain directional antenna that emits a narrow signal beam, limiting interference and ensuring stable connectivity, high-bandwidth and 867 Mbps speeds over long distances.
  • Long-Range 11ac Outdoor Access Point/Wireless Bridge High Speeds & Optimal Bandwidth at Extended Point-to-Point or Point-to-Multi-Point Ranges
  • Powerful 18dBi High-Gain Antennas Extend Networks to 5 Miles Point-to-Point
  • Optimal Bandwidth Supports Heavy Video Over Long Distances
  • PoE-Compliant Ports Offer Flexible Power Options for an IP Camera or AP,360-Degree, 3-Axis Pivoting Arm Locks for Precision Alignment

Long Range WiFi Bridge

Features

  • Built-in 18 dBi dual-polarized directional antenna to boost your signal. Wireless speed up to 900Mbps
  • Wireless ratio frequency up to 500mW, good for long distance transmission
  • 16M Flash + 64M RAM, more stable performance in wireless transmission
  • Delicate design makes the outdoor project flexible to carry out. It can be used in complicated environment, like elevator monitoring,also weather proof case against rugged environment
  • Standard with POE power supply, which makes project more simple and convenient and safe

Technical Specifications

  • Standard: IEEE 802.11a/n on 5 GHz

Power Source

  • PoE adapter 24V POE. 100V~240V AC, 50-60Hz

Long Range WiFi Bridge
Long Range WiFi Bridge




Physical Interface



  • 1 * DC Power input
  • 1 * LAN1 (Supports 802.N PoE Input)
  • 1 * LAN2 (Data oE Pass-Through)
  • 1 * Reset Button
  • 1 * A/B Switch
  • 1 * LED display



Indicator light



  • 1 * Power Indicator light
  • 1 * LAN1 Indicator light
  • 1 * LAN2 Indicator light
  • 1 * WLAN Indicator light



Package List



  • KuWFi Outdoor AP*2
  • PoE adapter*2
  • Pole Mount Ring
  • Mounting Screw Set
  • Quick Installation Guide



Long Range WiFi Bridge





Set IP address



  • Before logging in to the management page
  • Please set the computer's local IP address to 192.168.255.X



Login WeB UI



  • User Name: admin
  • Password: admin
  • For A unit, log in to 192.168.255.101
  • For B unit, log in to 192.168.255.201



Notes: The IP address of WebUI changes with the LED number, you can refer to picture 9

Management page



  • You can manage your AP here
  • Settings Page
  • NOTE: The SSID is hidden by default and can be turned on manually
  • Default SSID: CPE5G_5G+XXX(XXX=Radio Channel)
  • Default wifi password: zllinkcpe123456+XXX(XXX=Radio Channel)



Long Range WiFi Bridge

Long Range WiFi Bridge

Long Range WiFi Bridge
